Ultra-fast Forming · Cell-friendly · Self-supporting Ink

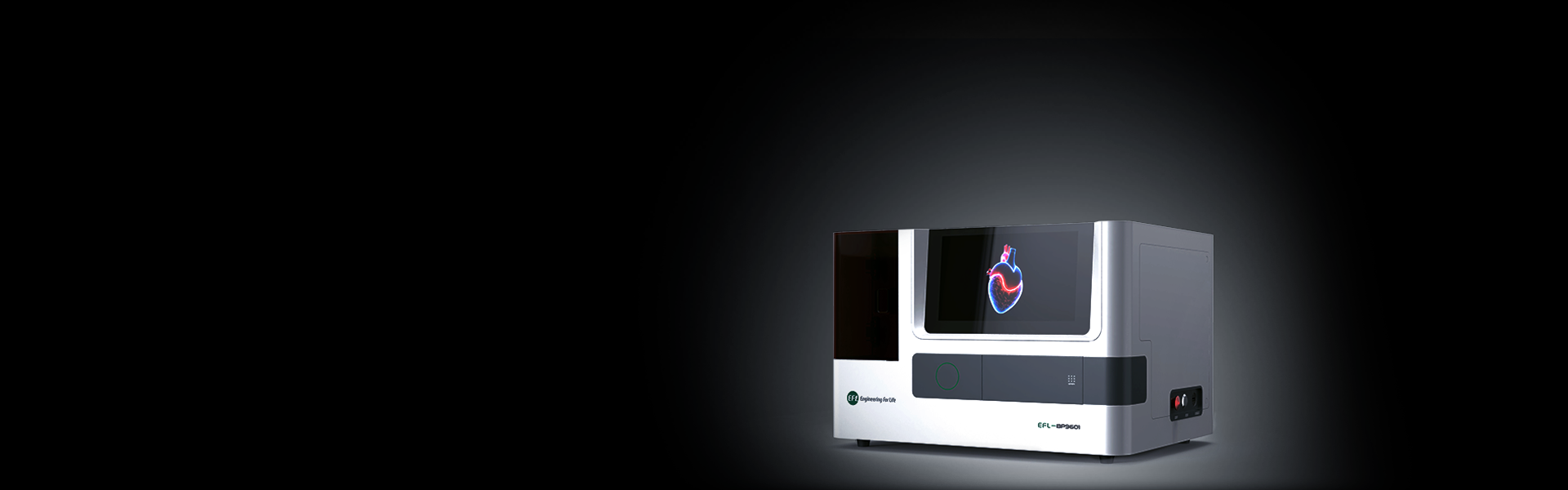

Volumetric 3D Bioprinter
Ultra-fast Forming | Cell-friendly | Self-supporting Ink
The EFL-BP9601 features ultra-fast printing speeds, enabling rapid formation of hydrogel models while maintaining the viability of cells and biological components. The self-supporting nature of the ink allows for the quick formation of suspended structures with good printing accuracy, making it suitable for applications such as cell-laden printing and rapid construction of fine hydrogel structures.
· Forms in seconds
·effectively avoiding cell and biological factor inactivation
· Non-contact printing avoids contamination
· Supports various cells such as embryonic cells, mesenchymal stem cells, fibroblasts, and cancer cells, with a survival rate of over 95%.
· Can directly print complex suspended structures
· Supports low-concentration ink forming
· 3840*2160 resolution
· 15μm pixel accuracy
· High-precision DMD chip
· Light intensity monitoring
· High-precision camera
· Observe the projection formation in real time
· High-performance control system
· Built-in software (networked and offline）
· Rich tissue model library
· Synchronous printing of multiple samples
· Supports rapid heating and cooling of hydrogels, ensuring materials are in a printable state
Constructs centimeter-scale biological tissues for tissue repair, personalized drug screening, and in vitro pathophysiology research.
Constructs hydrogel actuators for research in flexible sensors and soft robotics.
Constructs high-resolution internal channel structures for simulating natural tissue microenvironments, developing in vitro models, or tissue repair.
Can be combined with near-field direct writing and suspended printing technologies to manufacture complex structures with various materials.
Used for rapid drug manufacturing, enabling research on drug formulations and loading content.
| Product Parameters | Parameter name | Parameter details |
| Mainframe | Main Unit Dimensions | 580×440×385 mm |
| Rotation Speed | ≤120°/s | |
| Printing Dimensions | Φ12H25mm, Φ15H25mm (container diameter × height) | |
| Container | Glass sample bottle | |
| Wavelength | 405nm | |
| Resolution | 3840*2160 | |
| Projection Accuracy | 15μm | |
| Light Intensity | 0~30mW/cm2 | |
| Other Functions | Printing Materials | PEGDA, GelMA, SilMA, F127DA, HAMA, etc. |
| Camera | Printing progress monitoring, resolution 720×540 | |
| Temperature Control Chamber | Facilitates material pre- and post-processing, 4~50℃ | |
| Touchscreen | 11.6 inches, resolution 1920×1080 |
EFL, make regenerative medicine research more efficient!
