High precision design · Exclusive for soft materials

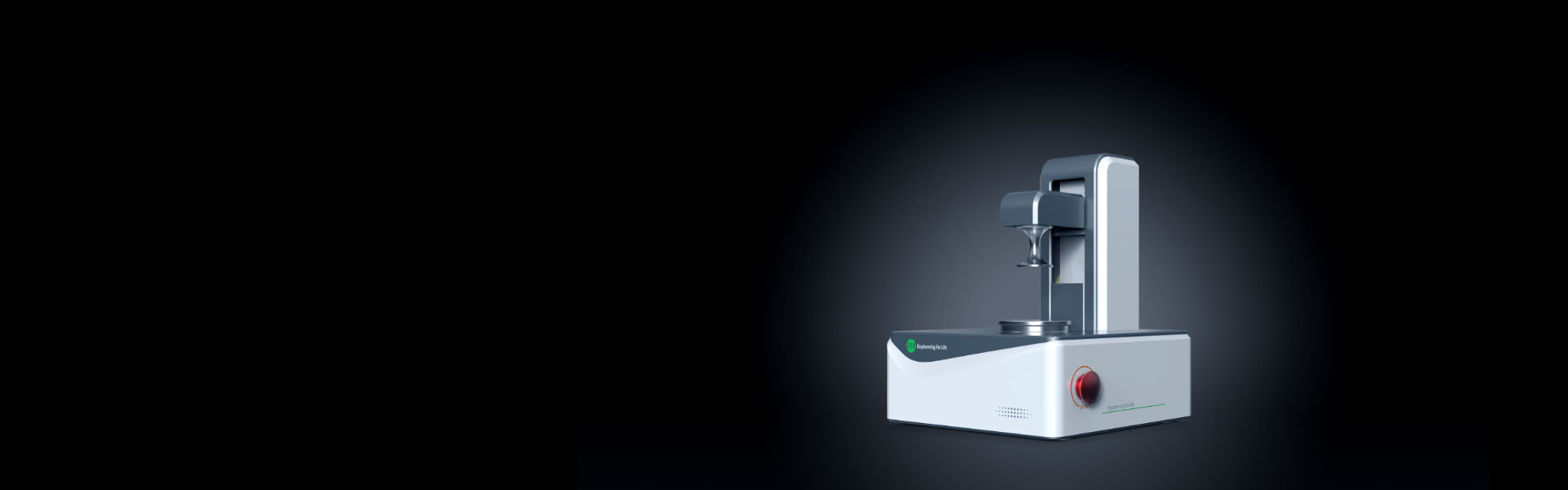

Biological Dynamiter
· High precision stepper motor with a minimum compression step size of 0.625 microns
· Customized force sensor with a range of 20N and a resolution of 1mN
· Appropriate compression test size
· Stainless steel compression platform
· Replaceable compression platform
· Small size - The device can be placed in any position on the test bench
· Clear and concise software control interface
· Real time display of force and displacement data
· Automatic and manual dual emergency stop protection
· One USB cable can start the force test
· Project management mode, supporting engineering project grading operations
· Multi parameter adjustable, supporting real-time display of test images
· Loop testing mode: adjustable speed and frequency
· Support saving, plotting, and exporting experimental data
· Other custom modes
Parameter | Parameter details |
| Equipment size | 195×185×223mm(L×W×H) |
| Measurement range | 0~20N |
| Force measurement resolution | 1mN |
| Sample size | Φ30mm×30mm |
| Compression speed range | 1~200mm/min |
| Minimum compression step size | 0.625μm |
| Sampling frequency range | 1-5000point/mm |
| Compression mode | Single compression |
| Cyclic compression | |
| Stress relaxation test | |
| Additional software features | Project - Sample Management System |
| Chart data drawing and analysis | |
EFL, make regenerative medicine research more efficient!
