Multi functional and multi process·Modular and customizable·Fast printing
Multi-functional Extrusion-based 3D Bio printer
EFL-PPNT
EFL-PPHT
EFL-PPDT
EFL-PRNH
EFL-PPHV
EFL-PRHV
Bone scaffolds:The bone scaffold manufactured by high temperature printing technology can be used for the repair of bone tissue with different hardness.
High strength chitosan scaffolds:By combining high-temperature printheads and platforms, chitosan hydrogel can be printed using an embedded high-temperature coagulation bath method.
Hydrogel low temperature printing:Through the Low temperature process, the complex structure of common hydrogels such as GelMA and gelatin can be printed.
High precision scaffold orientation induces cell growth：Improve the near-field directional induction writing process to manufacture high-precision heterogeneous biological scaffolds with controllable fiber diameter, and induce directional cell growth through structural differences
Macro and micro cross-scale scaffolds printing：Macro and micro cross-scale scaffold printing can be printed through switching the electronic field, in which microfiber improves bio compatibility and coarse fibers provide strong mechanical properties of scaffolds.
High precision microfluidic chips printing:Based on high precision 3D printing, the idea of microframe mold was proposed to realize micro-nano scale manufacturing of brittle hydrogel complex structure, and was applied to microfluidic chips.
Coaxial printing of large-sized vascularized tissues: Coaxial printing of GelMA (outer layer) and endothelial cell loaded gelatin (inner layer). After gelatin dissolution, endothelial cells deposit and adhere, effectively constructing vascularized tissues.
Flexible electronic coaxial printing: Through coaxial printing technology, the bottleneck problems of liquid metal oxidation and difficult packaging in printing have been solved
Rotational printing of tubular scaffolds : By using the rotational printing technology, the rapid printing of tubular scaffolds (which can be used in the research of trachea, bloods vessels,urethra and so on) can be realized.

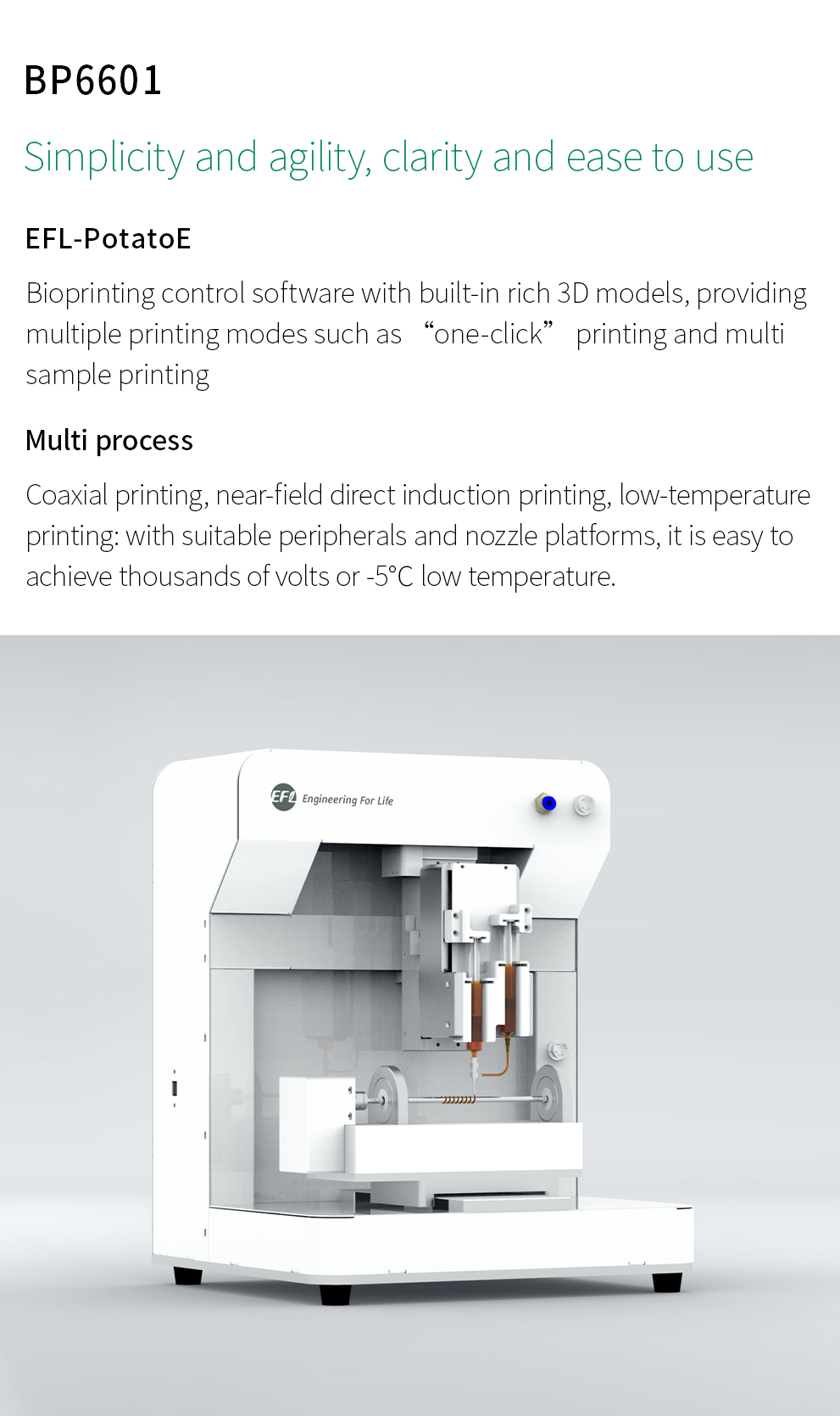

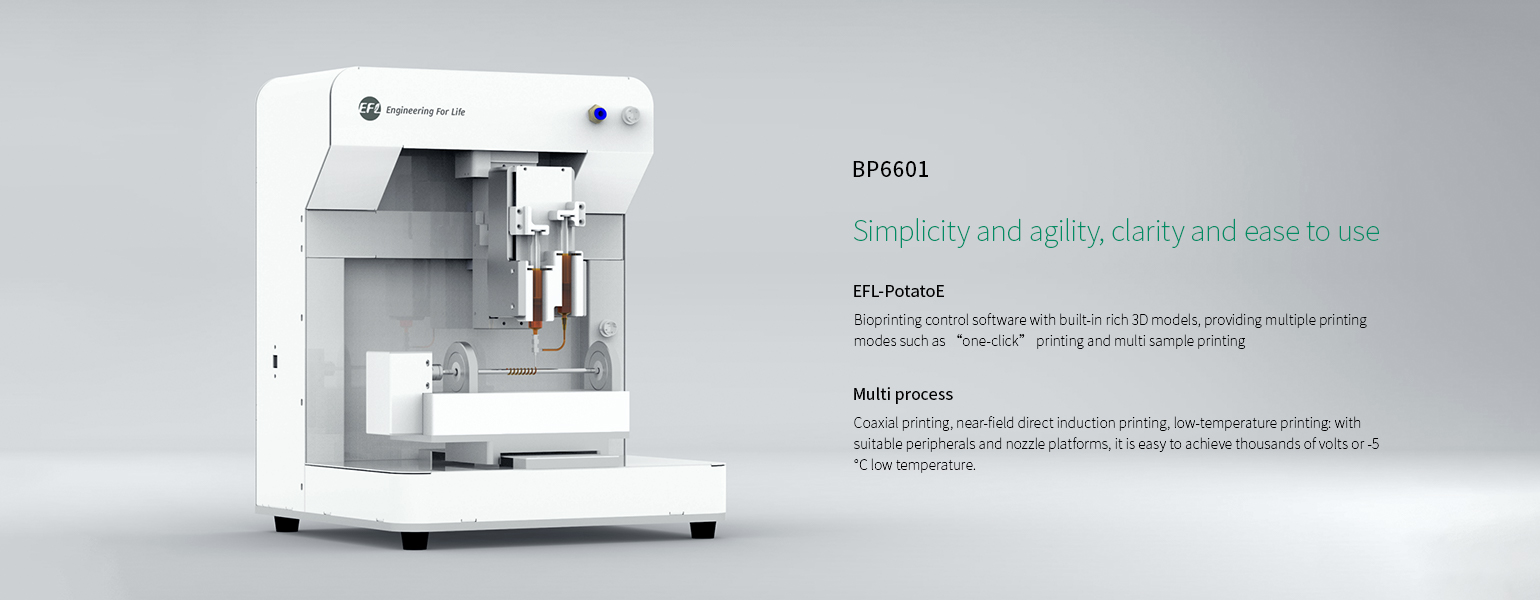

| BP6601 parameters | |
Equipment size | 370mm×352mm×470mm |
Effective printing size | 100mm×100mm×50mm |
Maximum moving speed | 50mm/s |
Minimum height | 10μm |
Repetitive positioning accuracy | 5μm |
power | 100~240V，50~60HZ，350W |
weigh | 22kg |

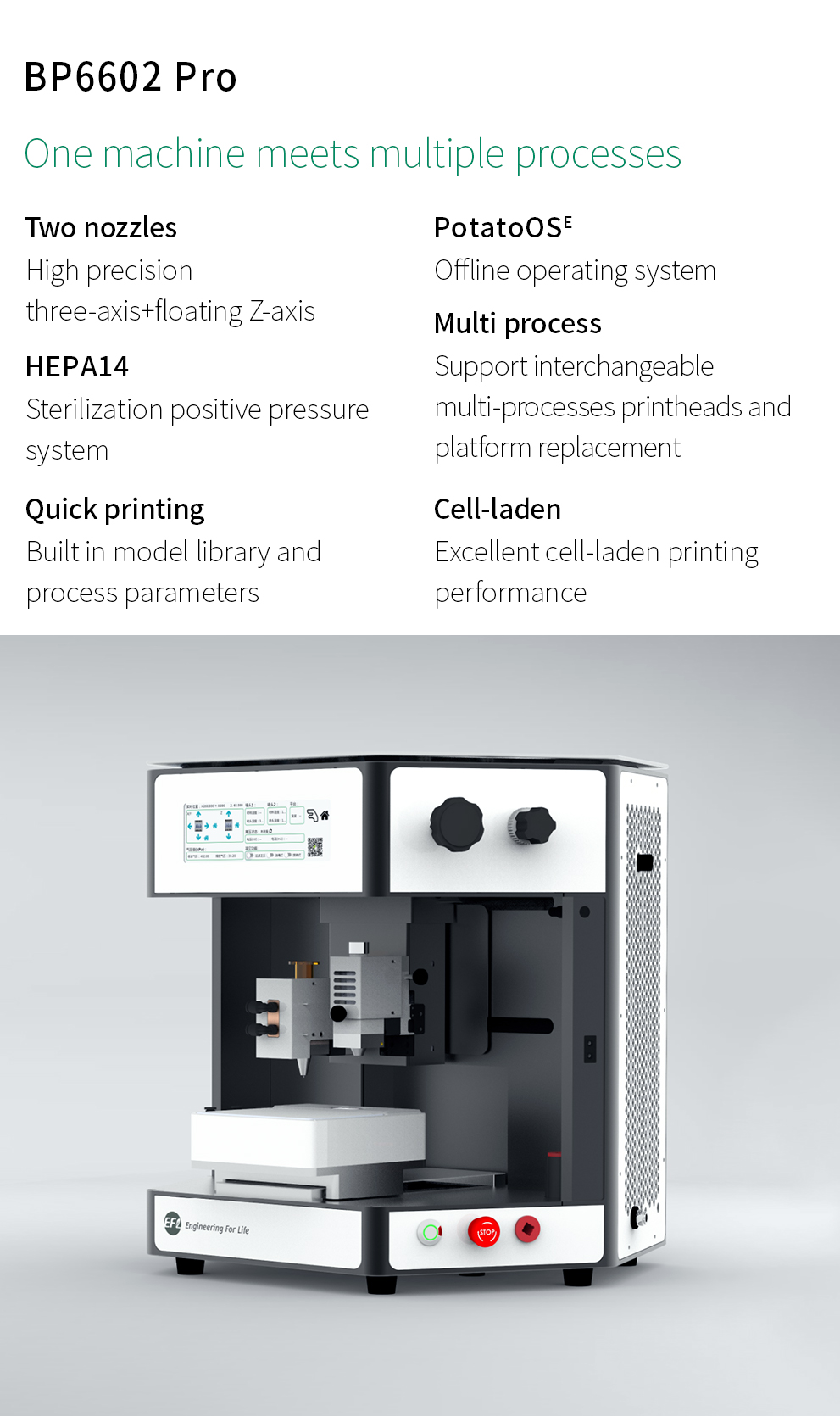

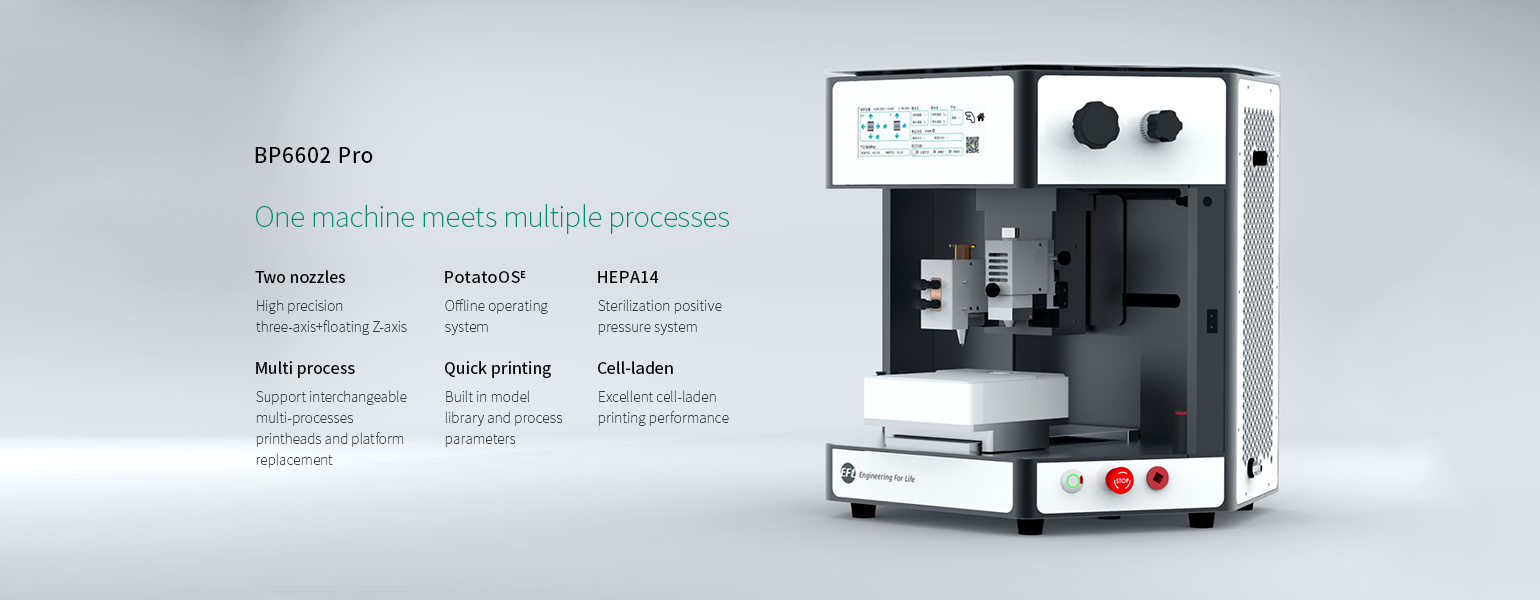

BP6602 Pro parameters | |
Equipment size | 505mm×450mm×505mm |
Effective printing size | 100mm×100mm×50mm |
Maximum moving speed | 50mm/s |
Minimum height | 10μm |
Repetitive positioning accuracy | 5μm |
power | 100~240V，50~60HZ，850W |
Extrusion-based 3D Bio printer
EFL, make regenerative medicine research more efficient!
